Hitchworks SB75 Sure Brake Actuator – 7,500 lb Capacity

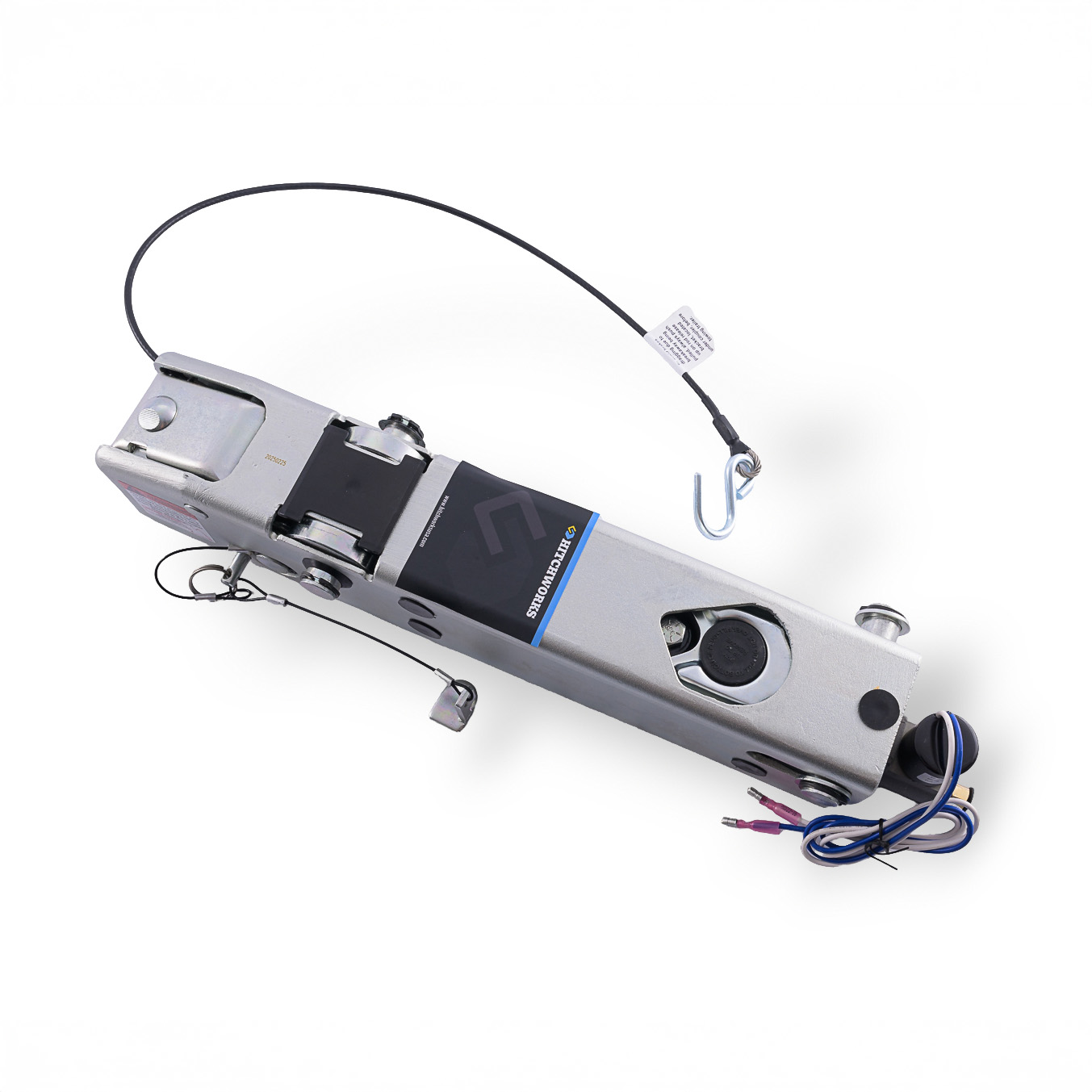

Hitchworks SB75 actuator for disc brake trailers

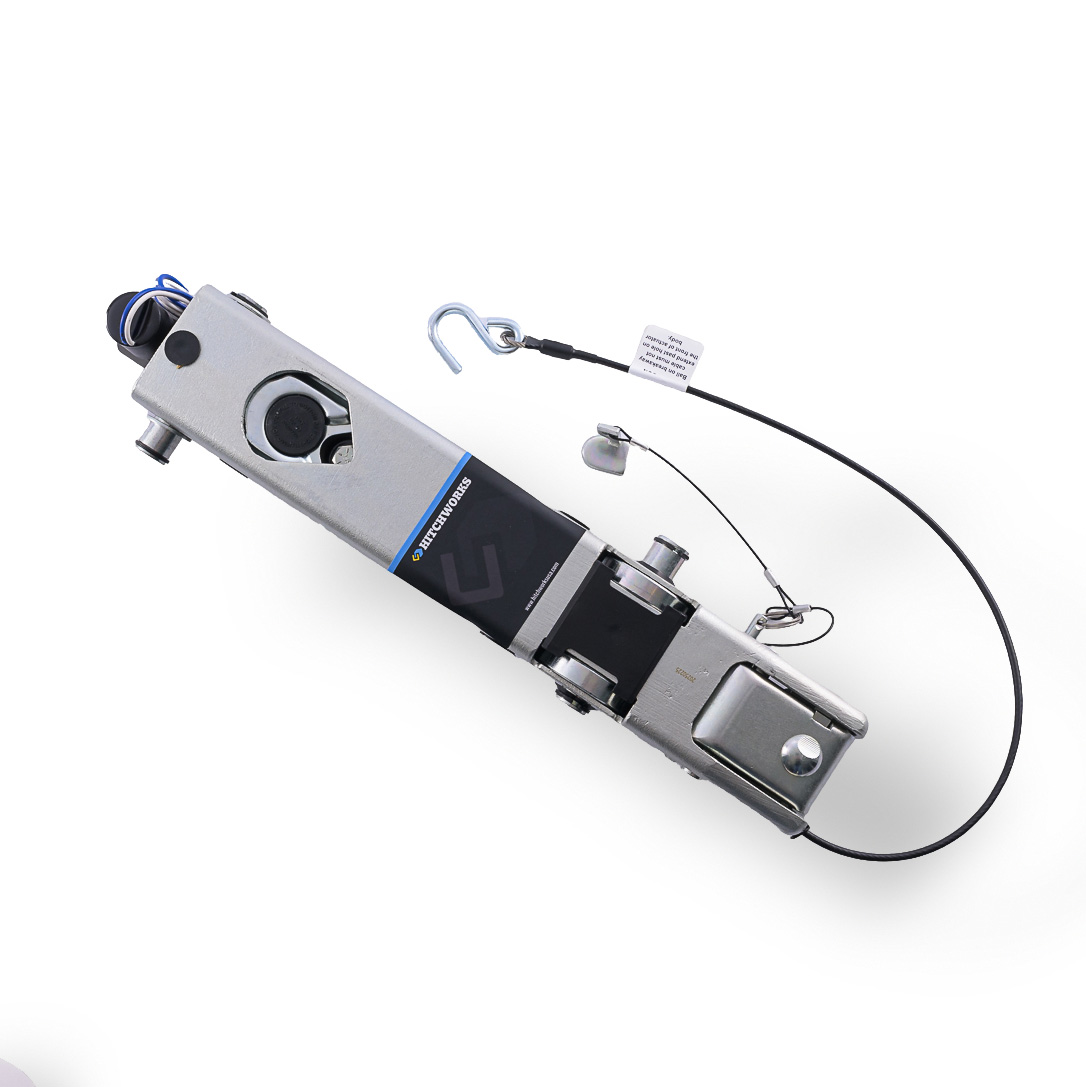

Hitchworks SB75 Sure Brake Actuator – 7,500 lb Capacity - Image 3

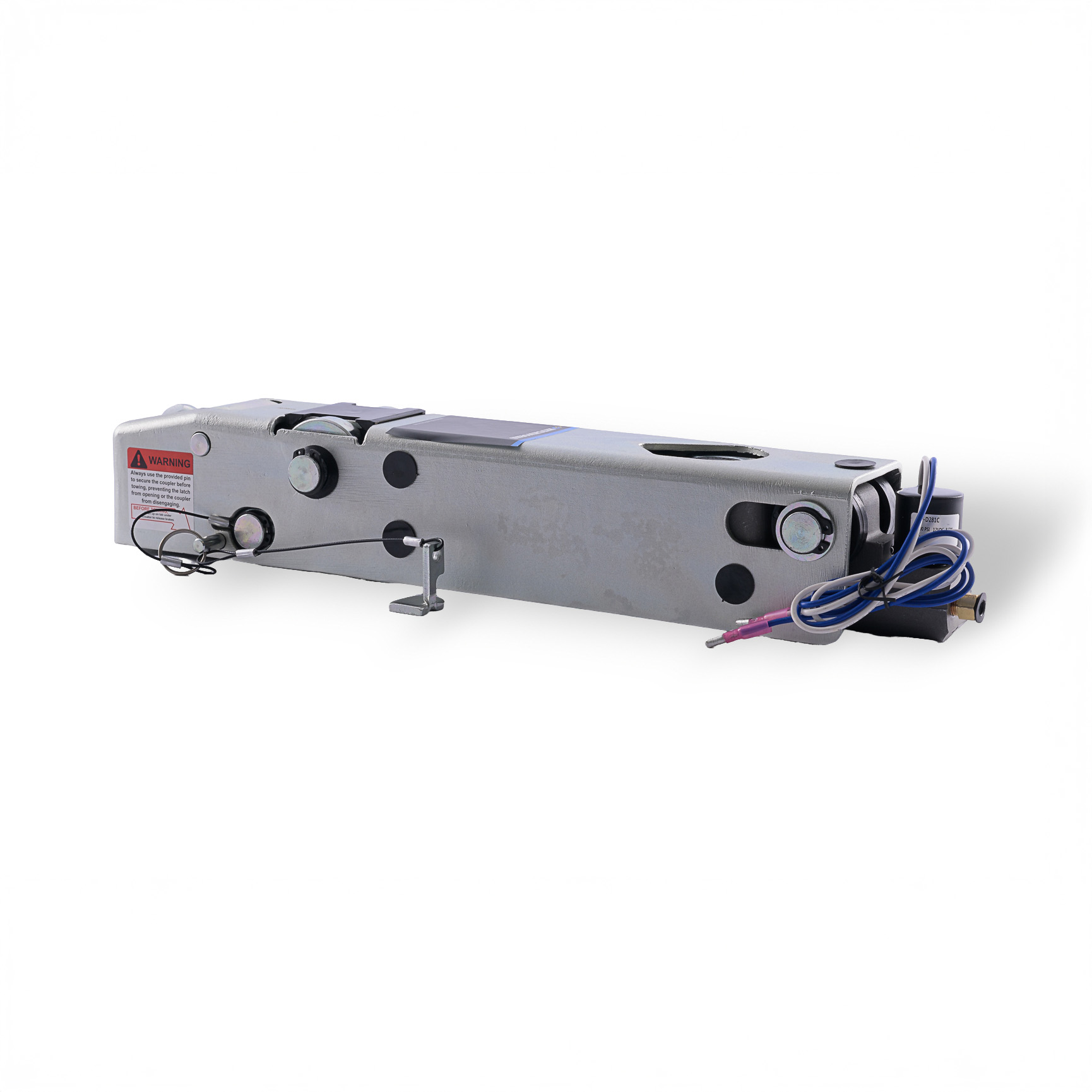

Hitchworks SB75 Sure Brake Actuator – 7,500 lb Capacity - Image 4

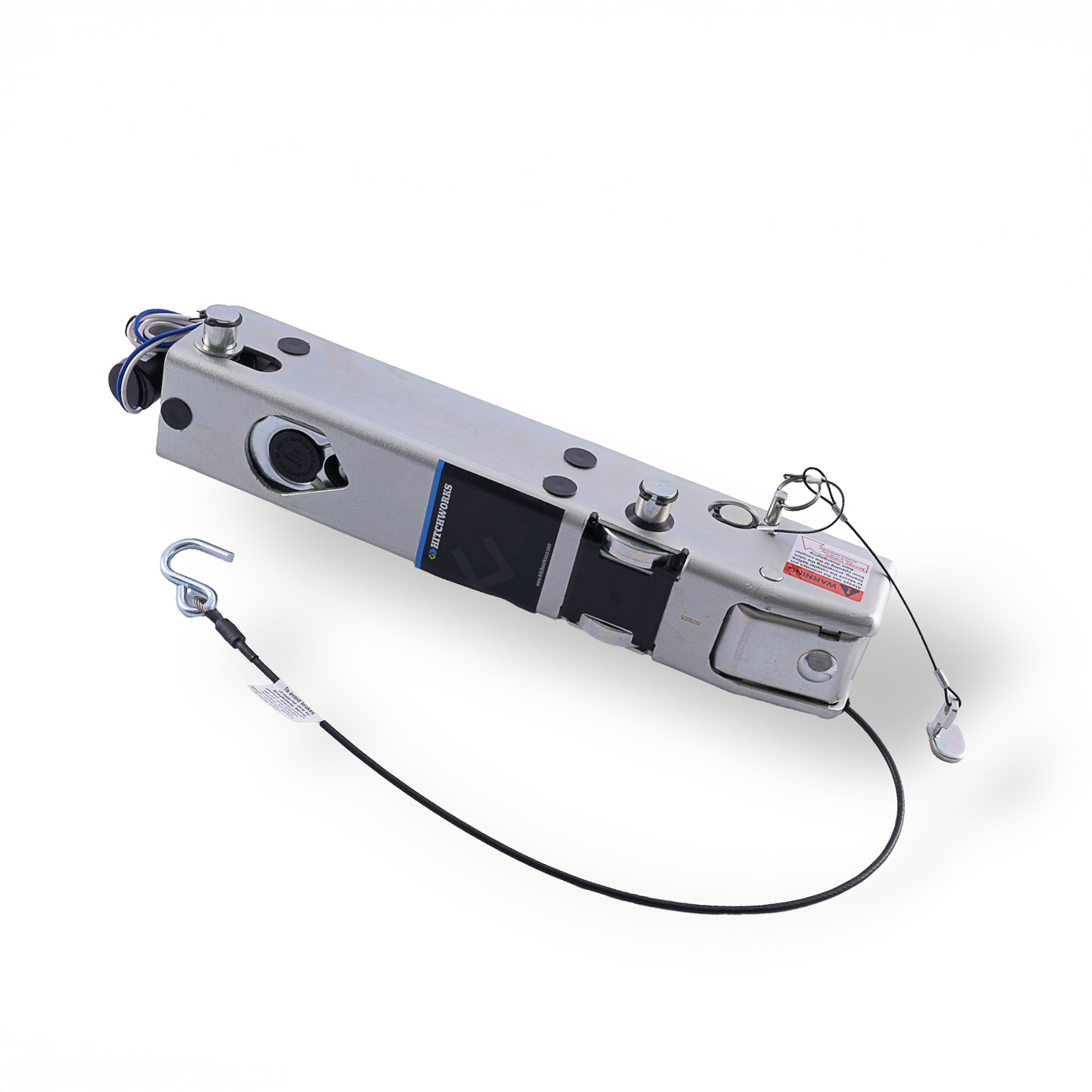

Hitchworks SB75 Sure Brake Actuator – 7,500 lb Capacity - Image 5

Download Catalog

sku: HW-SB-75 categories: All Products, Brake Actuators, Couplers, New Arrivals

Hitchworks SB75 Sure Brake Actuator – 7,500 lb Capacity

$250.00

The Hitchworks SB-75 Sure Brake actuator is built from cast 1045 steel and rated for 7,500 lbs GTW. Designed for single or tandem axle trailers with disc brakes, it features a 120-hour salt spray coating for corrosion resistance. Safe and durable, the SB-75 requires a 2″ tow ball and always engages with the included safety pin for secure towing.

The Hitchworks SB75 Sure Brake actuator is built tough to give you reliable braking power when it matters most. Engineered from cast 1045 steel and tested with a 120-hour salt spray coating, this actuator is designed to handle harsh conditions without compromise.

Rated for 7,500 lbs GTW, the SB75 works with single or tandem axle trailers equipped with disc brakes. Whether you’re hauling cargo, equipment, or recreational vehicles, this actuator delivers smooth, controlled braking for safer towing.

For secure operation, the SB75 requires a properly rated 2″ tow ball and must always be used with the safety pin engaged. Rugged, reliable, and built for real-world towing, the Hitchworks SB75 is a trusted choice for frequent haulers.

Check out the video below:
